OVERVIEW:

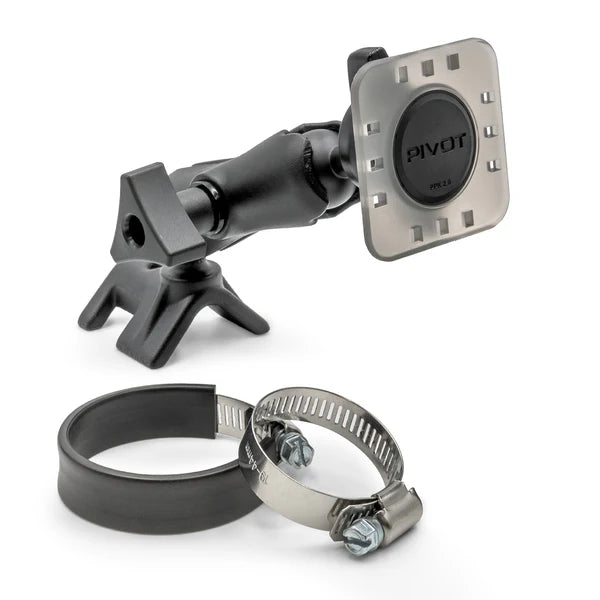

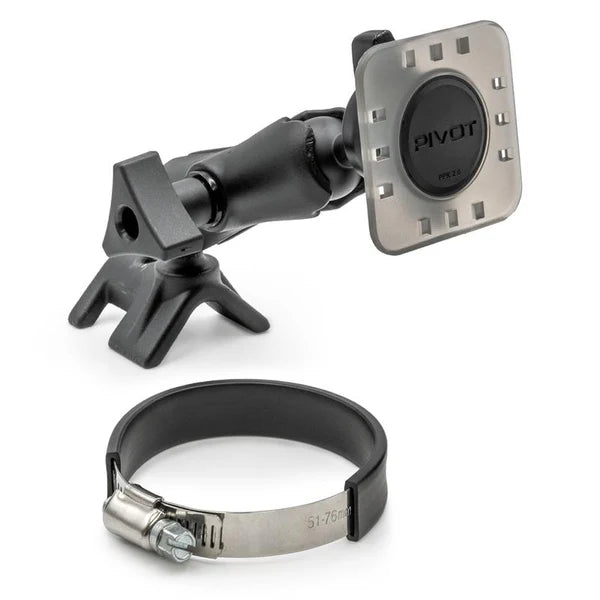

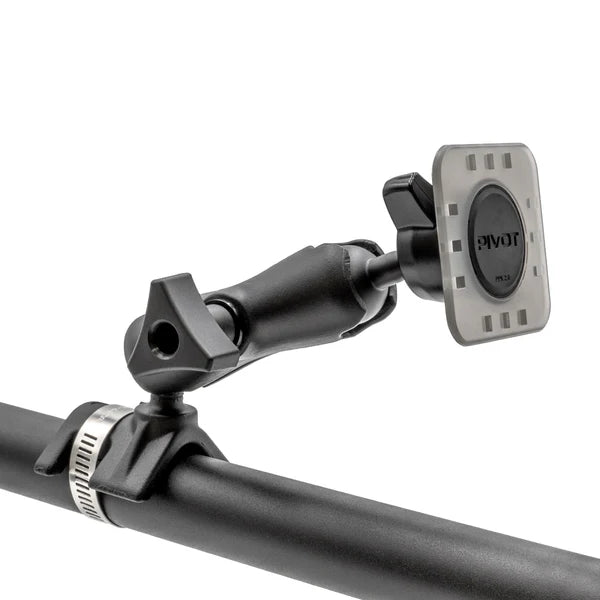

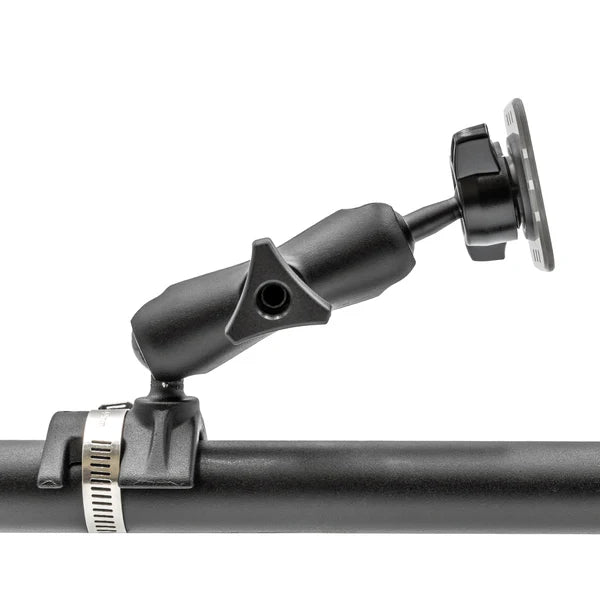

Introducing the PIVOT Yoke Clamp Mount, an unbeatable yoke-mounting solution. It is available in two sizes to a wide range of aircraft. The Small Clamp fits aircraft with yoke rods between 1-2.1 inches in diameter, such as those found in Cessna aircraft. The Large Clamp fits aircraft with yoke rods between 2-3 inches in diameter, such as those found in the Beechcraft Bonanza and other popular aircraft. Once installed, it will not lose its grip, ensuring that your device remains exactly where you mounted it regardless of flight conditions. Marine-grade aluminum, high strength polycarbonate, and stainless-steel hardware ensures durability and reliability in the most demanding environments. Order now!
Caution: Always ensure freedom of flight control movement before attempting to fly with any mount attached to the aircraft yoke.
Note: If you’re unsure which clamp option is right for your application, contact us or measure the yoke rod in the aircraft you fly prior to ordering.
FEATURES:
TECH SPECS:
Weight
Small Clamp Mount (complete assembly): 9.50 oz, 269.3 g
Large Clamp Mount (complete assembly): 10.04 oz, 284.6 g
Dimensions
Length: 6.75 in (171.5 mm)
Width: 2.63 in (66.7 mm)
Clamp Range
Small Clamp Mount: Cylindrical surfaces 1.0-2.1 in (25.4-53.3 mm) diameter
Large Clamp Mount: Cylindrical surfaces 2.0-3.0 in (50.8-76.2 mm) diameter
Materials
Upper Clamp Housing: Marine Grade Aluminum
Worm-drive Strap Clamp: Stainless Steel
Lower Strap: Rubber
Mounting Arm and Mounting Plate: High Strength Polycarbonate and TPU
COMPATIBILITY:
Small Clamp
Aircraft Yoke Rods 1.0-2.1 inches (25.4-53.3 mm) in diameter
Large Clamp
Yoke rods 2.0-3.0 inches (50.8-76.2 mm) in diameter
